Online UPS

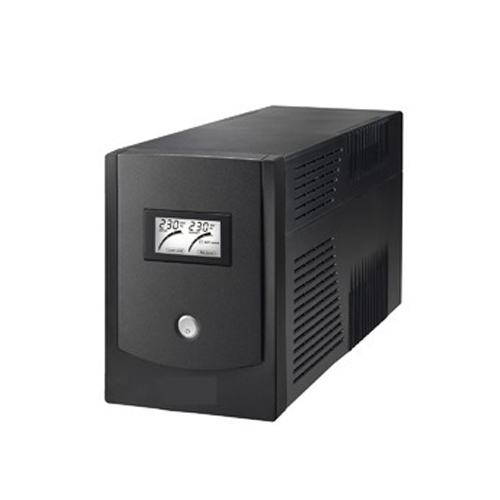

On-line UPS

Power is your Business Life Line. The more you have the better for your business growth and productivity and losing it may prove disastrous for your business. So, for uninterrupted power security and performance preserve it with Matrix online ups system. Our sophisticated technology has enable us to cater to varied needs of power distribution and backups, we provides a complete line of power electronics products. These include Online UPS 1kva to 1000KVA. Moreover our vast industry experience and our presence have enabled us to offer our technologically advanced power solutions as per the requirements of our customer.

Technical Specifications :


Range
 1 KVA to 20 KVA, Single Phase
5 KVA to 60 KVA, Three Phase
Nominal Frequency
 47 Hz to 53 Hz
DC Voltage (Optional)
 As per customer's requirement
Output (Technology)
 IGBT
Output Voltage
 230Volts AC (Single Phase)
400/415 Volts AC (Three Phase)
Voltage Regulation
 +/-1% for DC I/P variation & O/P load variation
50Hz +/- 0.05Hz
50Hz +/- 0.05Hz
Any optional frequency
Wave Form
 Pure Sine Wave
Power Factor
 0.8 lagging to unity
Harmonic Distortion
 Less than 3%
Inverter Efficiency
 >93% for 360V DC and above
>90% for 180V DC
>85% for 48V DC/ 60V DC/ 72V DC/ 120V DC
Crest Factor
 3:1
Overload
  1. 125% for 5 Minutes
    150% for 60 Sec
Audible Noise
  1. Less than 45 Db ant 1 Meter
Metering
  1. Output Voltage, Analog/Digital (Optional)
    (As per customer choice) LED & Microprocessor based Digital LCD metering for multiple
    parameters shall be provided as optional in Higher Capacities.
General Operation Temperature
 0oC to 50oC
Humidity

Max 95%, Non-condensing
Protection
(DC Under Voltage)

Inverter Trips
Inverter & Charger Trips
(DC Over Voltage)
(Output Under Voltage)
(Output Over Voltage)
(Output Over Load)
(Output Short-circuit)

Inverter Trips
Inverter Trips
Inverter Trips
Inverter Trips
Indication & Alarms

Mains On by Indicator
Inverter On by Indicator
(Mains Fall)
(DC Low)
(DC Over Voltage)
(Output Under Voltage)
(Output Over Voltage)
(Output Overload)

Indicator & Alarm
Indicator & Alarm
Indicator & Alarm
Indicator & Alarm
Indicator & Alarm
Indicator & Alarm
By Pass Facility
(Static Bypass Switch)

Manual Bypass Switch (Provided as Standard feature)
Bi-directional (Optional)
Isolation of Power
(Input)
(Output)
(Battery)

MCB Provided
Switch / MCB (Optional)
HRC fuse / MCB (Optional)
Battery Bank
(Capacity)

Sufficient to sustain full for 10 min to 10 Hrs. or
Any backup time required
Type of Battery

SMF (Sealed Maintenance Free) or Tubular Stationary
Lead-Acid Battery
Accessories

Set of inter row & interbank connectors with battery
Battery mounting Rack (Optional)
Application

Servers, Computer work stations, Network equipments.
Telecom & Cellular equipments.
Automatic Teller machines.
Medical equipments, Fire protection equipments.
Special Purpose machines.
